Best RF-Elements products in the Network antenna category
On this page you'll find a ranking of the best RF-Elements products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

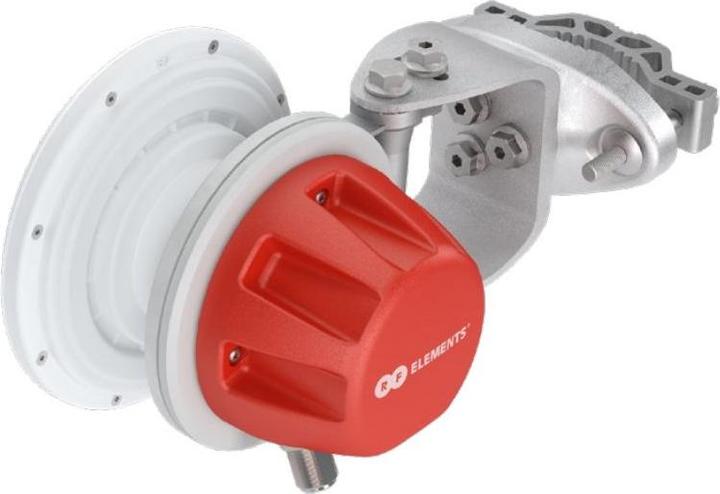

1. RF-Elements HG3-CC-S40 - 1.62 dBi - 5.18 - 6.4 GHz - 50 Ohm - 40° - 40° - horn antenna
RF Elements HG3-CC-S40 - Symmetrical Horn Carrier Class Antenna Gen 2
Symmetrical Horn-CC Antennas Gen2 offer unique RF performance in a compact housing. The scalable horn antennas feature symmetrical main beams with identical beamwidths in both vertical and horizontal planes. Exceptionally small side lobes provide remarkable interference suppression. HG3-CC Gen2 antennas are ideal for covering areas with customers near the installation site, where null zone issues may arise. Thanks to their unique radiation patterns and compact size, they enable high-density AP clusters and radio co-location.
Symmetrical Horn-CC Antennas Gen2 come with numerous enhancements in RF performance and design, including a visually lighter housing and significantly improved mounting. The radomes are made from more durable materials, and all HG3-CC Gen2 antennas use only two radome sizes. The HG3-CC Gen2 antenna is equipped with N-type connectors.
Technical Specifications
Radio connection: 2x N-type connectors
Antenna type: Horn
Materials: UV-resistant polycarbonate, polypropylene, aluminum, zinc, stainless steel
Protection class: IP55
Pole mounting diameter: 30-90 mm
Temperature: -30°C to +55°C
Wind resistance: 160 km/h
Wind load: 44 N at 160 km/h
Mechanical tilt: +/-25°
Weight: 2.3 kg
Packaging dimensions: 41.2 x 27.7 x 23.4 cm
Performance
Frequency range: 5180 - 6400 MHz
Gain: 16.2 dBi
Azimuth/Elevation BW -3 dB: H 27°/V 27°
Azimuth/Elevation BW -6 dB: H 40°/V 40°
Front-to-back ratio: 35 dB
VSWR max. 5180–5850 MHz: 1.6
VSWR max. 5850–6400 MHz: 1.9
Polarization: Dual linear H + V
Impedance: 50 Ohm.
2. RF-Elements AH60-TP - 60° Asymmetrical Beam Antenna
3. RF-Elements directional antenna UltraHorn - 24 dBi - 11° - 11° - horn antenna - IP55 - 160 km

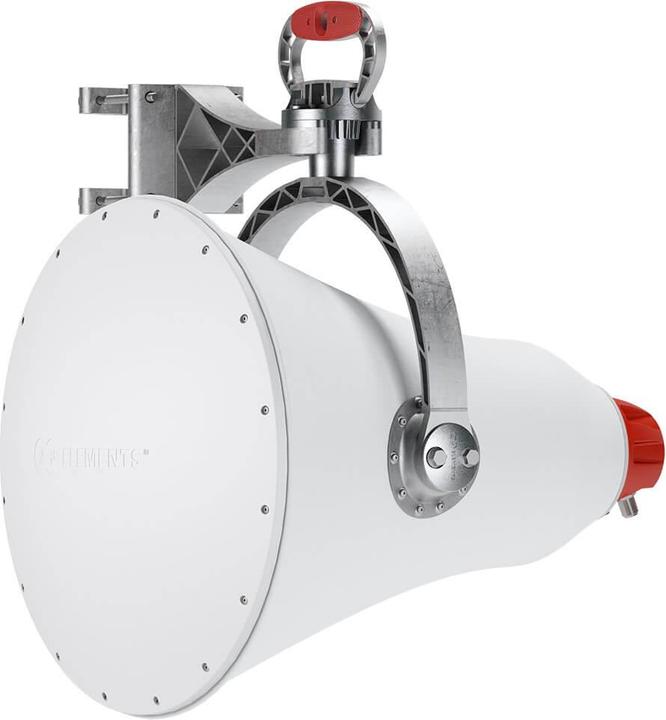

RF Elements UH-CC-5-24 - UltraHorn CC 5-24 Antenna
The UltraHorn CC 5-24 is a high-gain horn antenna with high directivity and symmetrical radiation pattern. Its symmetrical beam with equal horizontal and vertical beamwidths, combined with the absence of sidelobes, ensures excellent performance in terms of interference suppression. You won't need to spend extra money on radomes, enclosures, or other additional shielding.
The UltraHorn CC 5-24 antenna is suitable for point-to-point connections in high-noise areas. Thanks to its unique radiation characteristics, the UltraHorn CC 5-24 delivers outstanding performance as a narrow beam antenna and is a versatile tool for precise network planning. The UltraHorn CC 5-24 is a dual-polarization antenna system (H + V) with two N connectors.
Technical Specifications
Antenna connection: 2x N Bulkhead connector
Antenna type: Horn
Materials: UV-resistant ABS plastic, polycarbonate, polypropylene, aluminum, stainless steel
Protection class: IP55
Pole mounting diameter: 30-80 mm
Temperature: -30°C to +55°C
Wind resistance: 160 km/h
Wind load: 210 N at 160 km/h
Mechanical tilt: +/- 25°
Weight: 8.7 kg
Dimensions: 57.0 x 57.0 x 66.0 cm
Performance
Frequency range: 5180 - 6400 MHz
Gain: 24 dBi
Azimuth/Elevation BW -3 dB: H 11°/V 11°
Azimuth/Elevation BW -6 dB: H 16°/V 15°
Polarization: Dual linear H + V
Front-to-back ratio: 40 dB
VSWR max. 5180 - 5850 MHz: 1.6
VSWR max. 5850 - 6400 MHz: 1.8.
Network antenna
EUR526,54
RF-Elements directional antenna UltraHorn - 24 dBi - 11° - 11° - horn antenna - IP55 - 160 km

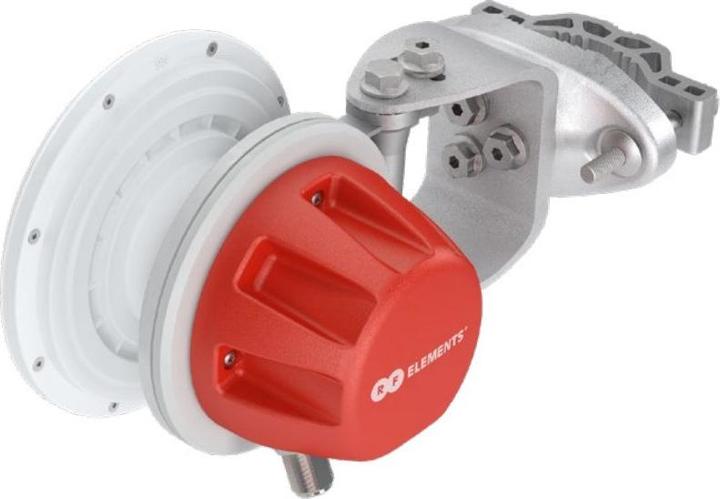

4. RF-Elements HG3-CC-S80 - 10.4 dBi - 5.18 - 6.4 GHz - 50 Ohm - 80° - 80° - horn antenna
RF Elements HG3-CC-S80 - Symmetrical Horn Carrier Class Antenna Gen 2
Symmetrical Horn CC Antennas Gen 2 offer unique RF performance in a compact housing. The scalable horn antennas feature symmetrical main beams with identical beam width in both vertical and horizontal planes. Exceptionally small side lobes provide remarkable interference suppression. The HG3-CC Gen 2 antennas are ideal for covering areas with customers near the installation site, where null zone issues exist. Thanks to the unique radiation patterns and compact size, high-density AP clusters and co-location of radios are made possible.
Symmetrical Horn CC Antennas Gen 2 provide numerous enhancements in RF performance and design, including a visually lighter housing and significantly improved mounting. The radomes are made from more durable materials, and all HG3-CC Gen 2 antennas use only two radome sizes. The HG3-CC Gen 2 antenna is equipped with N-type connectors.
Technical Specifications
- Radio connection: 2x N-type connectors
- Antenna type: Horn
- Materials: UV-resistant polycarbonate, polypropylene, aluminum, zinc, stainless steel
- Protection class: IP55
- Mast mounting diameter: 30-90 mm
- Temperature: -30°C to +55°C
- Wind resistance: 160 km/h
- Wind load: 22 N at 160 km/h
- Mechanical tilt: +/-25°
- Weight: 1.8 kg
- Packaging dimensions: 30.5 x 23.9 x 18.3 cm
Performance
- Frequency range: 5180 - 6400 MHz
- Gain: 10.4 dBi
- Azimuth/Elevation BW -3 dB: H 60°/V 60°
- Azimuth/Elevation BW -6 dB: H 80°/V 80°
- Front-to-back ratio: 29 dB
- VSWR max. 5180–5850 MHz: 1.6
- VSWR max. 5850–6400 MHz: 1.9
- Polarization: Dual linear H + V
- Impedance: 50 Ohm.
Network antenna
EUR129,–
RF-Elements HG3-CC-S80 - 10.4 dBi - 5.18 - 6.4 GHz - 50 Ohm - 80° - 80° - horn antenna
5G
5. RF-Elements STD-21-UM -

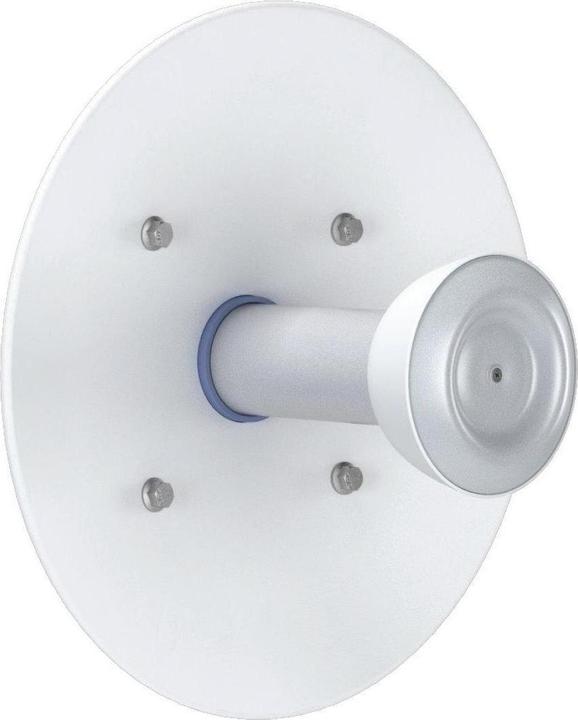

The StarterDish antenna from RF Elements is a directional parabolic antenna with a gain of 21 dBi, primarily designed for customer installations. The antenna consists of a very lightweight parabolic dish, a simple mount for a mast with a diameter of 20 to 55 mm, and an aluminum radiator that features a so-called IsoStation connector on the back for direct connection to IsoStation or PrismStation units from Ubiquiti Networks. The antenna package also includes a reducer for connecting to a C5x unit from Mimosa.

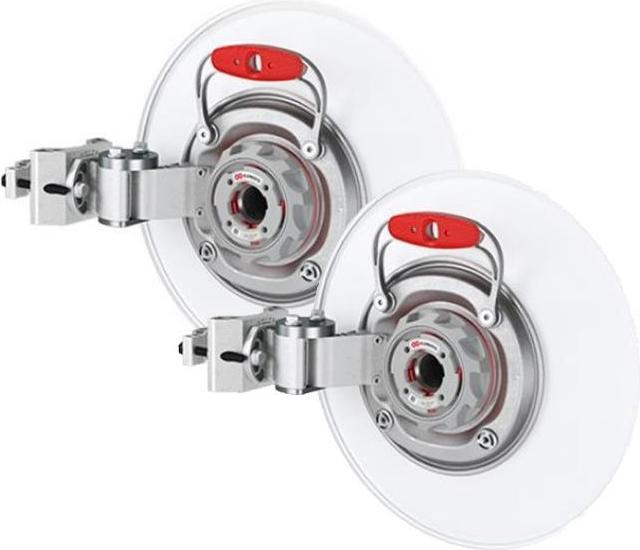

6. RF-Elements UD-TP-24 - Parabolic Dish Antenna with TwistPort(TM) Connector
UltraDish TP 24 - Parabolic Antenna with TwistPort Connector
The UltraDish TP 24 is designed for subscriber module applications. Minimized side lobes, a wide frequency bandwidth, and stable gain in both polarizations ensure reliable performance. The antenna reflector is made of aluminum to ensure low weight and a uniform shape. The proprietary TwistPort waveguide connector allows for intuitive radio connectivity and easy swapping.
The robust mount with an improved grip and a variety of applicable mast diameters makes installation simple and versatile. The stainless steel hardware is coated in black.
Physical Specifications
- Antenna Connector: TwistPort - quick-locking waveguide connector
- Antenna Type: Parabolic Dish
- Materials: UV-resistant ABS plastic, polycarbonate, aluminum, stainless steel
- Protection Class: IP65
- Mast Mounting Diameter: 40-80 mm (recommended as close to 80 mm as possible)
- Temperature: -40°C to +60°C
- Wind Resistance: 160 km/h
- Wind Load: 167 N at 160 km/h
- Weight: 7.3 kg - 2-pack (2 pieces) including packaging
- Dimensions: 470 x 470 x 205 mm - 2-pack (2 pieces) including packaging
Performance
- Gain: 24.4 dBi
- Frequency Range: 5180 - 6400 MHz
- Azimuth Beamwidth -6 dB: H 12°/V 11°
- Elevation Beamwidth -6 dB: H 11°/V 12°
- Azimuth Beamwidth -3 dB: H 9°/V 8°
- Elevation Beamwidth -3 dB: H 8°/V 9°
- Beam Efficiency: 40%
- Front-to-Back Ratio (min.): 35 dB
Compatible Wireless Platforms
- Any TwistPort adapter
- Any SIMPER radio.
7. RF-Elements RF Elements Horn 90 degree Balanced Antenna Carrier Class 5GHz 10dBi Gen2 HG3-CC-S90
Network antenna
EUR160,69
RF-Elements RF Elements Horn 90 degree Balanced Antenna Carrier Class 5GHz 10dBi Gen2 HG3-CC-S90
8. RF-Elements UltraDish UD-TP-27 Directional parabolic antenna
The UltraDish UD-TP-27 is a high-performance, directional parabolic antenna specifically designed for use in network environments. With an impressive antenna gain of 27.5 decibels (dB), it enables effective signal transmission and reception over long distances. This antenna features a Twistport(TM) connector, allowing for easy and flexible installation. The IP65 protection rating ensures that the antenna is protected against dust and water, enhancing its reliability and durability in various environments. The UltraDish UD-TP-27 is ideal for applications where a strong and stable connection is required, whether in urban or rural areas. Its robust construction and thoughtful design make it an excellent choice for professionals seeking a powerful solution for their networking needs.
9. RF-Elements SH-TP 5-70 - 11,5 dBi - 4.9 - 6.2 GHz - 70° - 70° - Sector antenna - Horn antenn
RF Elements SH-TP-5-70 - Symmetrical Horn Antenna for Simper Radios
Symmetrical horn antennas feature a symmetrical radiation pattern in both the horizontal and vertical planes. This radiation pattern remains consistent across frequencies, and the antenna gain is balanced over a wide frequency range. Symmetrical horn antennas are low-loss and have suppressed side lobes. These characteristics make horn antennas ideal for use as sector antennas.
Advantages of a Wide Vertical Beamwidth
The symmetrical sector antennas offer a wide vertical beamwidth, providing benefits in coverage area.
More Coverage Without Nulls
Symmetrical sectors cover a larger area than traditional sectors with a narrow vertical beamwidth. Symmetrical sectors do not experience issues connecting to nearby clients.
Easy Co-Location
Due to the very low side lobes of the horn antennas, symmetrical sector antennas are excellent for cluster implementations and co-location.
TwistPort Connection
Attaching the Simper radios to the sector antennas is done through a simple twist and lock mechanism. The connection to the radio is virtually lossless.
Compact and Weatherproof
The symmetrical sector antennas are compact and easy to install almost anywhere. They are made from the best weather-resistant materials such as aluminum, plastic, or stainless steel.
- Antenna Connection: TwistPort - Quick-release Waveguide Port
- Antenna Type: Horn
- Environment: IP55
- Temperature: -30°C to +55°C
- Weight: 1.3 kg
- Wind Resistance: 160 km/h
- Mechanical Tilt: +/- 25°
- Dimensions (H x W x D): 134 x 242 x 128 mm
Performance
- Frequency Range: 4900 - 6200 MHz
- Gain: 12 dB
- Polarization: Horizontal + Vertical
- Front-to-Back Ratio: 29 dB
- Xpol Attenuation: 27-28 dB
- BW Azimuth: 70° (-6 dB)
- BW Elevation: 70° (-6 dB).
Network antenna
EUR142,40
RF-Elements SH-TP 5-70 - 11,5 dBi - 4.9 - 6.2 GHz - 70° - 70° - Sector antenna - Horn antenn
10. RF-Elements HG3-TP-S50 network antenna Horn antenna TwistPort 14.3 dBi
Network antenna
−58%
EUR169,– was EUR398,27
RF-Elements HG3-TP-S50 network antenna Horn antenna TwistPort 14.3 dBi
