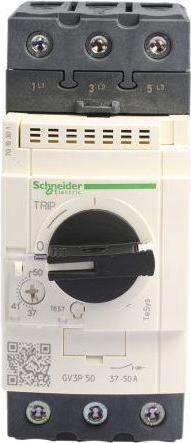

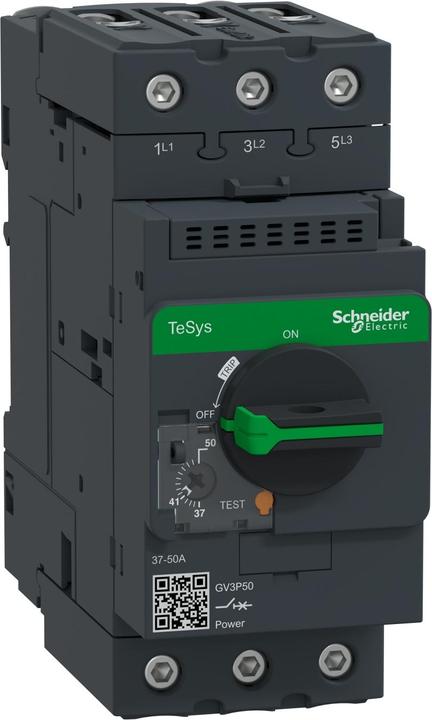

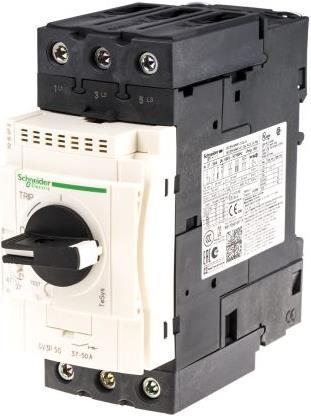

Schneider Electric MOTOR BREAKER 37-50A

Price in EUR including VAT
Ratings
BrandMore from Schneider Electric
Delivered between 13/1/2026 and 20/1/2026
free shipping

rated current4

Product details

Area: TeSys
Operating Voltage: 690 V AC
Width: 55 mm
Series: GV3
Breaking Capacity: 5 kA

Certified according to IEC 947 and UL 508 Type E. Motor circuit breaker - GV3P. Thanks to its new power supply connections, the GV3 circuit breaker product range ensures improved reliability of connections. It is designed to provide a constant clamping force that guarantees a firm, secure, and lasting connection even in very demanding environments. Thermal magnetic circuit breakers offer control and protection for motors from 5.5 kW to 30 kW. Product version with ring terminal, developed for the Asian market and specific applications. High breaking current: 50 kA/400 V from 40 to 65 A and 100 kA/400 V from 9 to 32 A. 3-position, lockable, rotary knob. Test button for tripping on the front. Sealable cover to protect the thermal setting. Protection class IP65.

Key specifications

Circuit breaker type
Motor protection switch
Mounting type
Top-hat rail
Width
55 mm
Length
136 mm
number of poles
3
Item number
10313950

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
GV3P50
Release date
15/1/2019
External links
Manufacturer's site (de)

Colour

Colour
Black
Exact colour description
Black

Circuit Breaker Features

Circuit breaker type
Motor protection switch
Mounting type
Top-hat rail
Mounting type
Screw fastening
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
0.03 A
Rated voltage
690 V
voltage type
AC
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
136 mm
Width
55 mm
Height
132 mm
Weight
960 g
