Area: TeSys
Operating Voltage: 690 V AC
Width: 55 mm
Series: GV3
Breaking Capacity: 5 kA

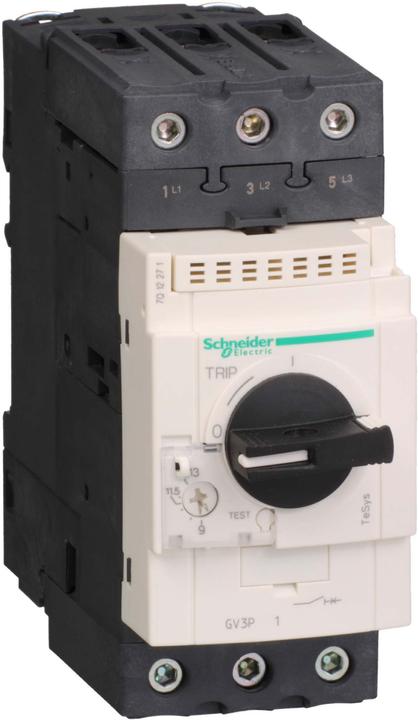

Certified according to IEC 947 and UL 508 Type E. Motor circuit breaker - GV3P. Thanks to its new power supply connections, the GV3 circuit breaker product range ensures improved reliability of connections. It is designed to provide a constant clamping force that guarantees a firm, secure, and lasting connection even in very demanding environments. Thermal magnetic circuit breakers offer control and protection for motors from 5.5 kW to 30 kW. Product version with ring terminal, developed for the Asian market and specific applications. High breaking current: 50 kA/400 V from 40 to 65 A and 100 kA/400 V from 9 to 32 A. 3-position, lockable, rotary knob. Test button for tripping on the front. Sealable cover to protect the thermal setting. Protection class IP65.
