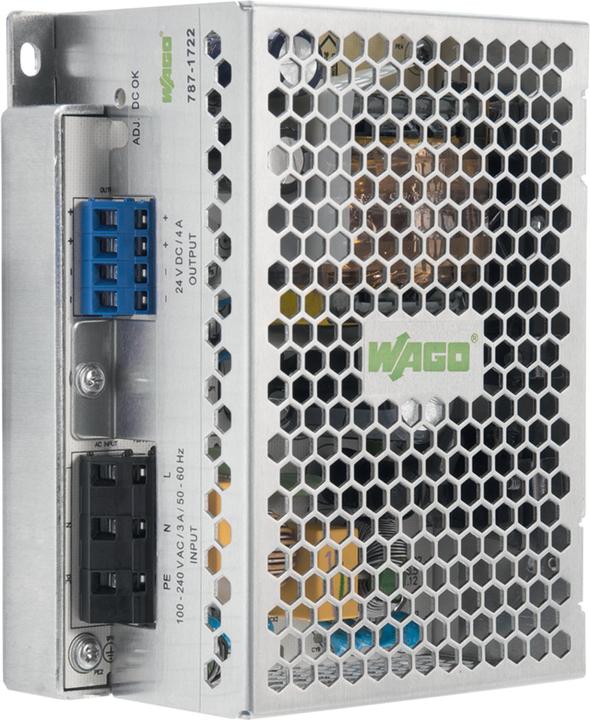

WAGO GmbH & Co. KG Power Supply Unit 787-1722

Manufacturer: WAGO GmbH & Co. KG
Designation: Primary switched power supply
Type: 787-1722
Supply voltage type: AC/DC
1st output voltage: 22..26 V
Max. output current 1: 5 A
Adjustable output voltage: yes
Nominal output voltage 1: 24 V
Nominal output current 1: 5 A
Short-circuit proof: yes
Rated supply voltage at AC 50 Hz: 90..264 V
Rated supply voltage at AC 60 Hz: 90..264 V
Rated supply voltage at DC: 125..375 V
Regulated output voltage: yes
Power output: 120 W
Stabilized: yes
Electrical connection type: Spring clamp connection
DIN rail mounting possible: yes
Wall mounting possible: yes
Suitable for series installation: yes
Width in pitch units: 6
Direct mounting possible: no

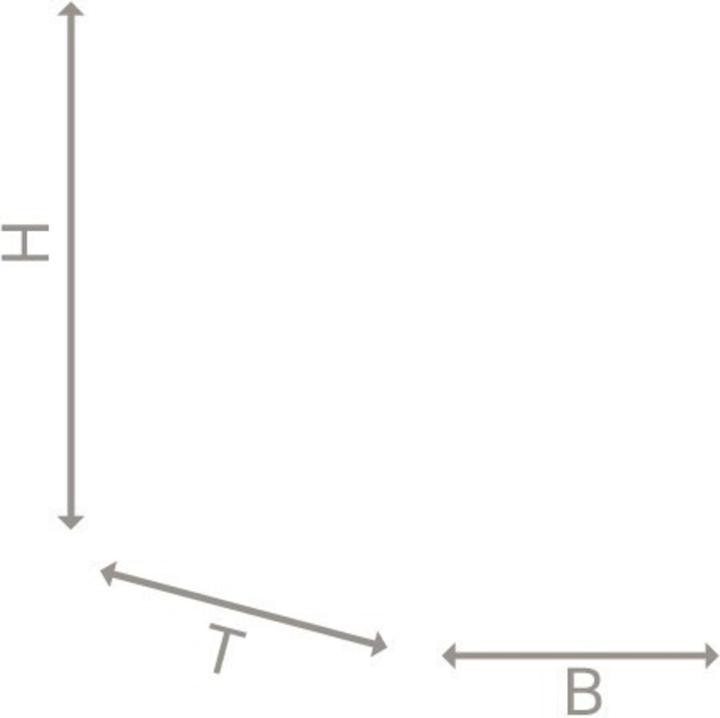

Width: 99 mm
Height: 130 mm
Depth: 60 mm
Suitable for safety functions: no
Protection class (IP): IP20

WAGO GmbH & Co. KG Power Supply Unit 787-1722: additional details
Primary switched power supply Eco 1-phase
Output voltage DC 24 V
Output current 5 A
DC-OK LED

Features: Primary switched power supply. Self-cooling through natural convection in horizontal installation position. Encapsulated, designed for cabinet installation. Can be connected in parallel or in series. Galvanically isolated output voltage (SELV) according to EN 60335-1 and UL 60950-1 PELV according to EN 60204. Mounting on 35 mm DIN rail in various positions possible. Direct mounting on mounting plate via screws possible.
EAN: 4055143372442.
