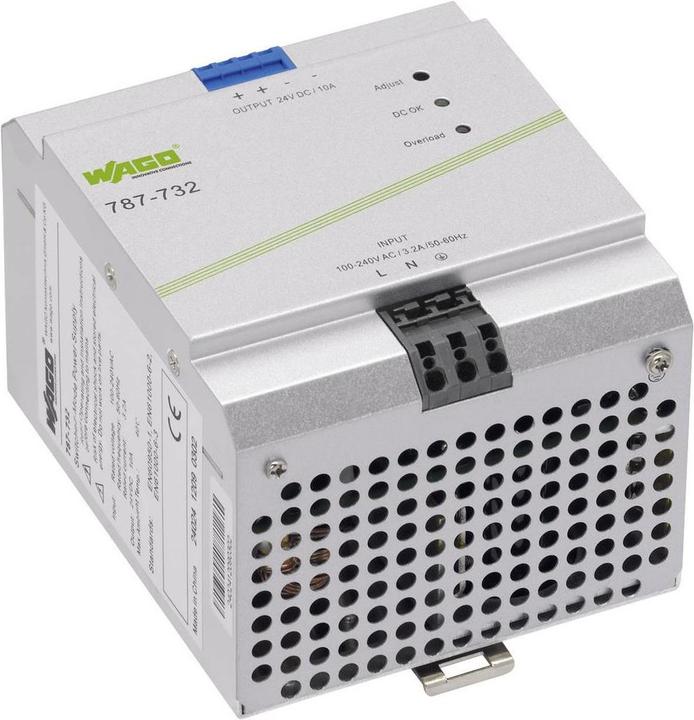

WAGO GmbH & Co. KG Power Supply 787-732

Manufacturer: WAGO GmbH & Co. KG
Designation: Power Supply 24V 10A
Type: 787-732
Voltage Type of Supply Voltage: AC/DC
1st Output Voltage: 22..28 V
Max. Output Current 1: 10 A
Adjustable Output Voltage: yes
Nominal Output Voltage 1: 24 V
Nominal Output Current 1: 10 A
Short-Circuit Proof: yes
Rated Supply Voltage at AC 50 Hz: 90..264 V
Rated Supply Voltage at AC 60 Hz: 90..264 V
Rated Supply Voltage at DC: 90..373 V
Regulated Output Voltage: yes
Power Output: 240 W
Stabilized: yes
Type of Electrical Connection: Spring Clamp Connection
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Series Installation: yes
Width in Division Units: 6
Direct Mounting Possible: no
Width: 110 mm
Height: 136 mm
Depth: 136 mm
Suitable for Safety Functions: no
Protection Class (IP): IP20

WAGO GmbH & Co. KG Power Supply 787-732: additional details
Power Supply Eco 1-phase
Output Voltage DC 24 V
Output Current 10 A
DC-OK LED
4.00 mm²
EAN: 4045454908140.
