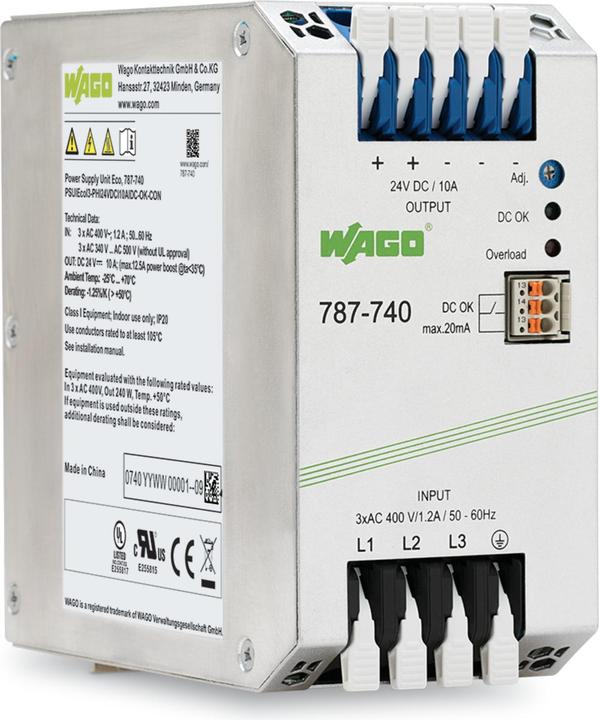

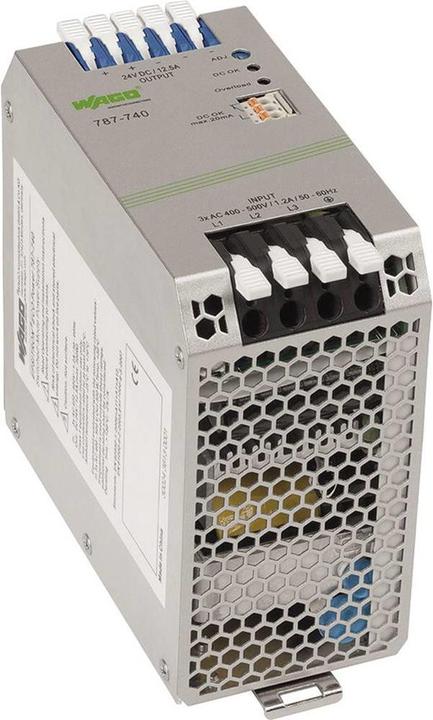

Wago DIN rail power supply (DIN rail
Only 2 pieces in stock at supplier
Nominal voltage4
Product details
The Wago DIN rail power supply is a primary switched system power supply designed for use in control cabinets. With an output voltage of 24 V DC and an output current of 10 A, this power supply provides a reliable energy source for various applications. It is designed for three-phase operation and allows for easy integration into existing systems. The construction of the power supply ensures effective self-cooling through natural convection, minimizing the need for additional cooling devices. Its compact design and the option for tool-free connection via terminal blocks with levers facilitate installation and maintenance. Additionally, the power supply offers galvanically isolated output voltage that complies with safety standards according to UL 60950-1 and EN 60204.
- Self-cooling through natural convection in horizontal installation position
- Encapsulated for control cabinet installation
- Fast and tool-free connection via terminal blocks with levers
- DC OK signaling via a bounce-free switching optocoupler
- Can be connected in parallel.
Nominal current | 10 A |
Nominal voltage | 575 V |
Number of outlets | 2 x |
Protection type (IP code) | IP20 |
Item number | 8497662 |
Manufacturer | Wago |
Category | Mobile power distributors |
Manufacturer no. | 787-740 |
Release date | 21/4/2018 |
Colour | Grey |
Exact colour description | Grey |
Nominal current | 10 A |
Nominal voltage | 575 V |
Number of outlets | 2 x |
Area of use | Inside |
mounting type | Fastening rail |
Number of poles | 3 x |
Power | 240 W |
input voltage | 575 V |
output voltage | 24V |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | Primary switched-mode power supply Eco 3-phase Output voltage DC 24 V Output current 10 A DC-OK contact |
Width | 65 mm |
Length | 130 mm |
Height | 130 mm |
Diameter | 130 mm |
Product Safety |
