Best Accuride products in the Drawer runners category
On this page you'll find a ranking of the best Accuride products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

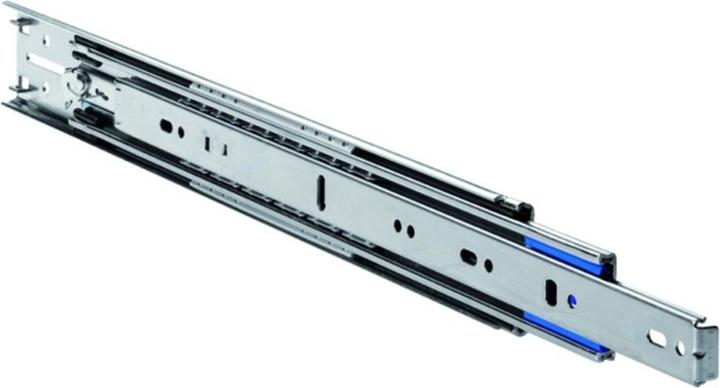

1. Accuride Full extension ball bearing slides (heavy duty) 9301
Rail thickness: 19.1 mm
Rail height: 76.2 mm
Optional angle accessory sets for various mounting options
Note:
Recommended fastening:
M5/M6 hex screw
max. head height 4.8 mm / ø 12.7 mm
Note on load capacity:
All fastening positions must be used to achieve the maximum load capacity.
The load capacity refers to a dynamic cycle of 10,000 repetitions.
If the rail is mounted horizontally, the load capacity is reduced to 20% of the vertical load value.
Design: Full extension
Load capacity (kg): 204
Type: Accuride DZ9301
Rail length (mm): 1219.2
Factory number: DZ9301-0048U-E
Material: Galvanized steel
Extension length (mm): 1219.2
Brand: Accuride
Mounting type: Side mounting
Contents (PAA): 1.

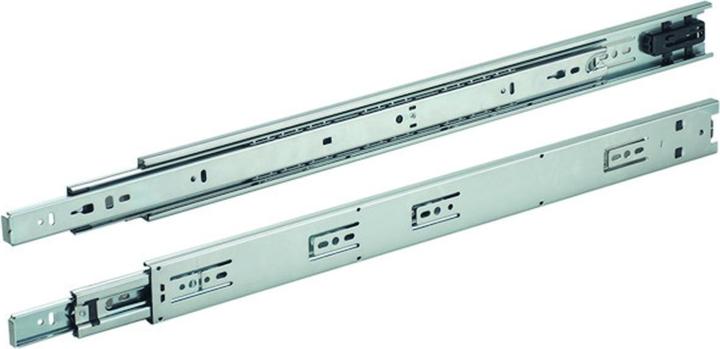

2. Accuride Over-extension ball bearing slide 3507, with locking function
The Accuride 3507 ball bearing slide is a high-quality solution for drawer systems that offers reliable and user-friendly functionality. This drawer slide is guided by two ball cages, ensuring smooth movement and stability. The integrated locking mechanism keeps the slide securely in the extended position, making it easier to handle and access the contents of the drawer. The pinch-free separation allows for easy removal and insertion of drawers, while the one-motion insertion simplifies the installation of heavier loads. These features make the Accuride 3507 ball bearing slide an ideal choice for applications that require both functionality and safety.
- Locking mechanism for secure hold in extended position
- Pinch-free separation for easy removal and insertion of drawers
- One-motion insertion for effortless installation of heavy loads
- Maximum load capacity of 67 kg for versatile applications.

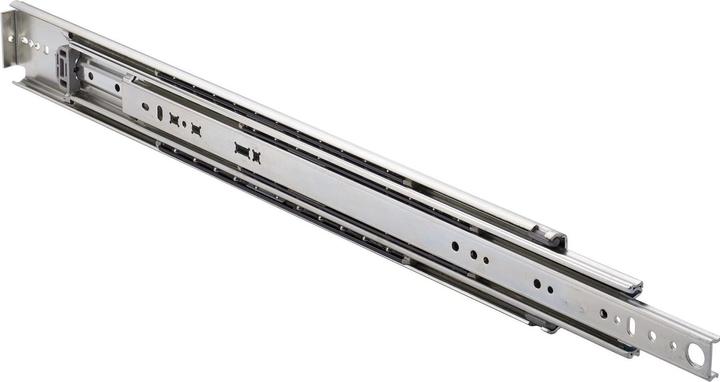

3. Accuride Ball over-extension DS5321, Corrosion resistant
The DS5321 ball bearing slide from Accuride is a high-quality solution for drawer systems used in harsh environments. This slide offers a maximum load capacity of up to 120 kilograms and is made from corrosion-resistant stainless steel, making it particularly durable and reliable. The anti-rollout feature ensures that the drawer remains securely closed, enhancing safety and user-friendliness. With a pull-out length of 323.5 millimeters, this slide allows easy access to the contents of the drawer, while the non-dampened closing function ensures quick and straightforward handling. The ball bearing slide is ideal for applications where robustness and reliability are required.
- Maximum load capacity of 120 kg for heavy-duty applications
- Corrosion-resistant stainless steel material for durability
- Anti-rollout feature for added drawer safety.

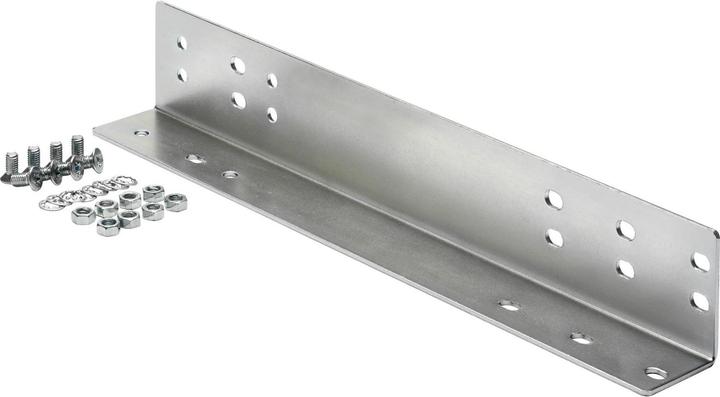

4. Accuride Mounting bracket for full extension ball bearing slides (heavy duty rail) 5321EC
The mounting bracket for ball full-extension slides (heavy-duty rail) 5321EC from Accuride is a robust and reliable solution for installing drawer slides. Made from high-quality, bright chrome-plated steel, this bracket offers high stability and durability required for heavy applications. The bracket is suitable for both side and bottom mounting, allowing for flexible installation in various configurations. The package includes two brackets as well as all necessary fasteners such as screws, nuts, and washers, making installation easier. With a length of 374 mm and a galvanized surface, this mounting bracket is ideal for use in demanding environments where reliability and strength are essential.
- Made from galvanized steel for increased corrosion resistance
- Versatile for side or bottom mounting
- Package includes all necessary fasteners
- Suitable for heavy-duty applications with ball full-extension slides.
Drawer runners
EUR48,76
Accuride Mounting bracket for full extension ball bearing slides (heavy duty rail) 5321EC

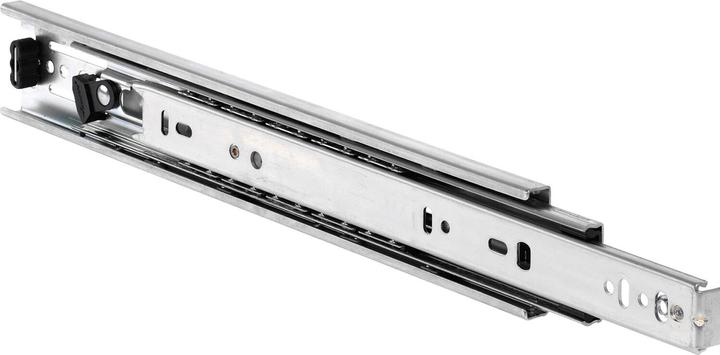

5. Accuride Full-extension ball bearing slides 3832DO with detent
Optional angle for floor mounting. Adjustment knobs for drawer (3.2 mm) eccentric - height adjustment of 1.6 mm up/down. Rail thickness 12.7 mm, rail height 45.7 mm.
Note: Recommended fasteners: Wood screw 4 mm/Euro screw 6 mm.
The rail length should not exceed the drawer width.
Note on load capacity: All fastening positions must be used to achieve the maximum load capacity. The load capacity refers to a dynamic cycle of 80,000 repetitions.
Load capacity (kg): 43, Type: Accuride 3832-DO, Design: Full extension, Rail length (mm): 350, Factory number: DZ3832-0035DO, Material: Galvanized steel, Extension path (mm): 356, Brand: Accuride, Mounting type: Side mounting, Features: Front quick release, Locking in extended position. Content summary (GT): 1.

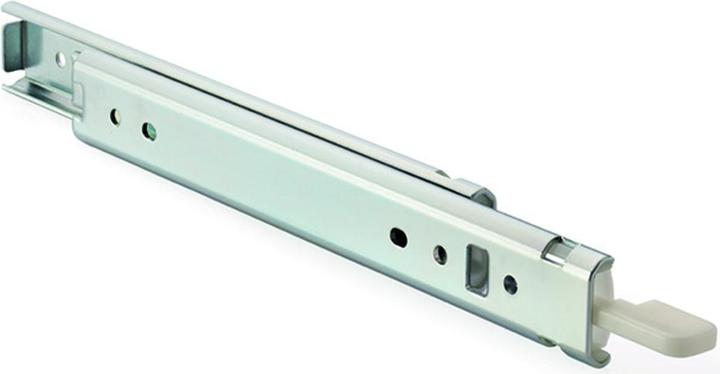

6. Accuride Ball part-extension Dual 2002
The Dual 2002 ball bearing partial extension slide from Accuride is a high-quality solution for drawer systems that offers reliable and efficient functionality. This partial extension allows for dual-sided use and is equipped with a central stop for added stability. The support tabs and included mounting hardware make installation easy and ensure a secure fit. The slide is made of robust steel and has a maximum load capacity of up to 35 kilograms, making it ideal for various applications. The non-dampened closing function provides direct and precise handling, while the galvanized surface offers additional protection against corrosion. With a pull-out length of 221.5 millimeters, this partial extension allows for easy access to the contents of the drawer, enhancing user-friendliness.
- Dual-sided partial extension with stable central stop
- Maximum load capacity of 35 kg for versatile applications
- Easy installation with included mounting hardware
- Galvanized surface for additional corrosion protection.
7. Accuride Full-extension ball bearing slides 2731 CL with locking device
The Accuride 2731 CL ball full extension slides with locking mechanism offer a reliable and secure solution for drawer organization. These drawer slides are made from high-quality steel and are characterized by their robust construction. They allow for full extension, making it easy to access the entire contents of the drawer. The locking feature ensures that the drawer remains securely in the closed position, which is particularly advantageous in environments where stability and safety are required. With a maximum load capacity of 23 kilograms, these slides are suitable for a variety of applications, from residential furniture to commercial settings. The chrome-plated surface provides additional protection and durability, while the non-damping closing function allows for easy handling. These slides are a practical choice for anyone who values quality and functionality.
- Locking in closed position for added security
- Maximum load capacity of 23 kg for versatile applications
- Full extension allows easy access to the entire drawer contents
- Robust steel construction with chrome-plated surface for durability.
8. Accuride Linear guide with recirculating ball bearing carriage DA0116RC
The DA0116RC linear guide with ball carriage from Accuride is a high-load solution for drawer slides, supporting a maximum load of up to 360 kg. It consists of robust aluminum rails and features a corrosion-resistant surface that ensures a long lifespan. The ball carriage, made of plastic, can be equipped with stainless steel or plastic balls, which must be ordered separately. The rails can be individually cut to the desired length, with the customer able to make the necessary 6.6 mm diameter drill holes themselves. This linear guide is versatile and can be equipped with soft-close damping or an end stop to meet the requirements of various applications.
- Maximum load of 360 kg for heavy-duty applications
- Corrosion-resistant aluminum rails for durability
- Customizable rails with self-drilled holes
- Versatile applications with soft-close damping or end stop.
9. Accuride Full-extension ball bearing slides 3832SC with self-closing feature 14-27 N
Closing/opening force 14 - 27. Adjustment cam for drawer (3.2 mm). Eccentric height adjustment of 1.6 mm up/down. Optional mounting angle for floor installation. Rail thickness 12.7 mm, rail height 45.7 mm.
Note: Recommended fasteners: Screw M4/Wood screw 4 mm/Euro screw 6 mm, max. head height 2.5 mm/ø9.6 mm.
The rail length should not exceed the drawer width.
Note on load capacity: All mounting positions must be used to achieve the maximum load capacity. The load capacity refers to a dynamic cycle of 80,000 repetitions.
Load capacity (kg): 42. Type: Accuride DZ3832-SC. Design: Full extension. Material: Galvanized steel. Rail length (mm): 300. Factory number: DZ3832-0030S. Features: Self-closing, front quick release, locking in closed position. Extension path: 286. Brand: Accuride. Mounting type: Side mounting. Contents (GT): 1.
Drawer runners
EUR53,31
Accuride Full-extension ball bearing slides 3832SC with self-closing feature 14-27 N

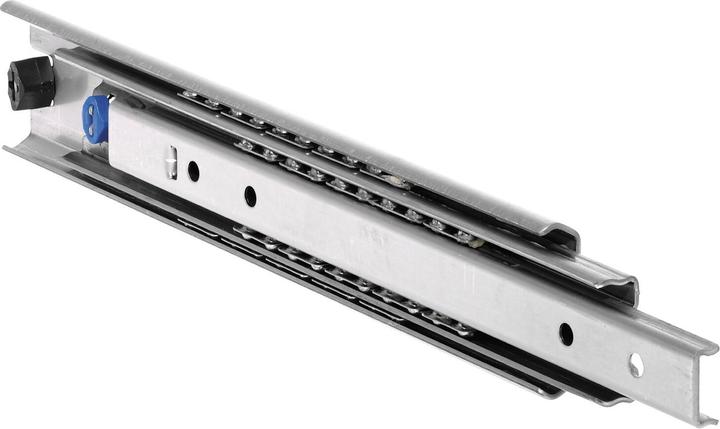

10. Accuride Ball bearing full extension slides (heavy duty rail) 7957
The ball full extensions (heavy-duty rail) 7957 from Accuride are a robust solution for the efficient use of drawers. Made from galvanized steel, these extensions offer a high load capacity of up to 160 kg, making them ideal for heavy-duty applications. With a mounting width of 19.1 mm, they are suitable for drawer widths of up to 1000 mm. The design featuring four ball cages ensures smooth and reliable functionality. The extensions are versatile and can be mounted on the side, horizontally, or on the floor. Additionally, they allow for easy front quick release, which facilitates handling and maintenance. These features make the ball full extensions an excellent choice for industrial and commercial applications where stability and durability are required.
- Load capacity of up to 160 kg for heavy-duty applications
- Versatile mounting options: side, horizontal, or floor mounting
- Easy front quick release for better handling
- Made from galvanized steel for increased corrosion resistance.
